All You Need To Know About Sensors And Their Future Scope

7 min readDec 28, 2021

What Is A Sensor?

Sensor is a device which helps to detect changes in various physical quantities like pressure, force, electric energy and other forms of energy. A physical phenomenon is converted into human readable display by the sensors.

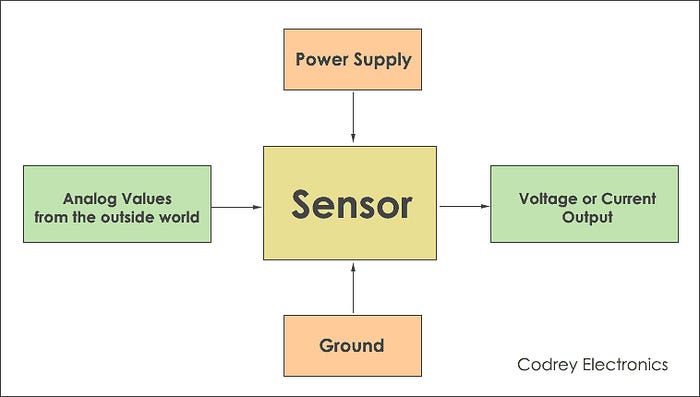

A sensor is a module or chip that detects changes in the physical world and relays the information to a microcontroller or microprocessor. For proper operation, the sensor requires both excitation (power supply) and grounding.

A list of different types of sensors that are regularly used in various applications is provided below. Temperature, resistance, capacitance, conduction, heat transfer, and other physical qualities are all measured by these sensors.

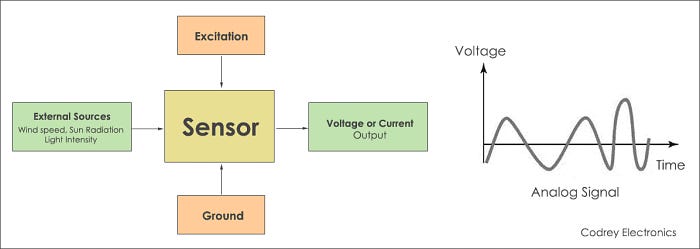

Analog Sensors

When a sensor produces continuous signal with respect to time with analog output, then it is called as Analog sensors. The analog output generated is in proportion with the input given to the system. In most cases, the output is analogue voltage or current in the 0 to 5 V range. Temperature, tension, pressure, displacement, and other physical properties are examples of continuous signals.

IR Sensor (Infrared Sensor)

The infrared region is divided into three regions as Near Infrared, mid Infrared and far Infrared region as we look into the electromagnetic spectrum. The frequency of Infrared sensors is less than the frequency of visible light but it’s higher than that of microwave. Infrared sensors are used not only for emitting IR radiation but also to detect the IR radiation.

Temperature & Thermocouple Sensors

As we know, analog sensors produce signals that continuously change with time. The sensor’s output value will be very low, in the microvolts or millivolts region. Because of this, signal-conditioning circuits are needed for amplification. To convert the analog signal obtained into a digital value, Analog to digital (ADC) converters are used.

Proximity Sensor

The proximity sensor is a sort of non-contact sensor that is used for object detection. It does not make physical touch with the item. The object whose distance is to be measured is referred to as the target. A proximity sensor uses infrared light or electromagnetic radiation. Object detection, velocity measurement, rotation identification, material detection, reverse parking sensor, and object counting are some of the uses for proximity sensors, which include inductive, capacitive, and ultrasonic sensors.

Ultrasonic Sensor

Using ultrasonic waves, ultrasonic sensors are used to quantify distance and travel time. A source will be used to create ultrasonic waves, which will be reflected and collected by the detector when they hit the target. The travel time between transmitted and reflected waves is measured by an ultrasonic sensor. The transmitter and receiver of optical sensors are two separate elements. For transmission and receiving, an ultrasonic sensor uses a single element.

Digital Sensors

Digital sensors are used when data is transformed and transmitted digitally. Discrete output signals are generated by digital sensors. Discrete signals are non-continuous in time and can be encoded in “bits” for serial transmission or “bytes” for parallel transmission. The digital representation of the measurement quantity will be used. Logic 1 or logic 0 can be used as a digital output (ON or OFF). A digital sensor is made up of three parts: a sensor, a cable, and a transmitter. Without the need of any additional components, the observed signal is transformed to a digital signal within the sensor itself. For long-distance transmission, cable is employed.

Light Sensor

To measure the speed of a spinning shaft, a digital LED or opto-detector is utilised to provide a digital signal. The rotating shaft is connected to a disc. On the circle of the rotating shaft are translucent slots. The disc rotates with the shaft when it rotates at a certain speed. The sensor passes through each slot on the shaft, producing a logic 1 or logic 0 output pulse. After passing through the counter/register, the output is shown on the LCD.

Digital Accelerometer

Variable frequency square wave output is generated by a digital accelerometer. Pulse-width modulation is a technique for creating square waves (PWM). The pulse width of a PWM signal is exactly proportional to the acceleration value.

Some Applications Of Sensors

Temperature sensors are used in medical institutions to monitor the temperature of patients.
Temperature sensors are used in manufacturing and industrial equipment to guarantee that machines do not overheat and become dangerous. Thermistors are small temperature sensors that can be used in a variety of applications.
Position sensors are required in many elements of motorsport, including throttle position, gear position, steering position, and many more. To function well in such a demanding environment, position sensors for these applications must be small and durable.
Pressure transducers are well suited to industrial applications due to their robustness and durability. Hydraulics and power stations are two examples of industrial applications and industries.
Proximity Sensors are utilised in smart phones to determine object distance. They employ a technique known as Reflective Indirect Incidence. After being reflected from an object, the transmitter’s radiation is received by the receiver. The intensity of the radiation received is used to compute distance.

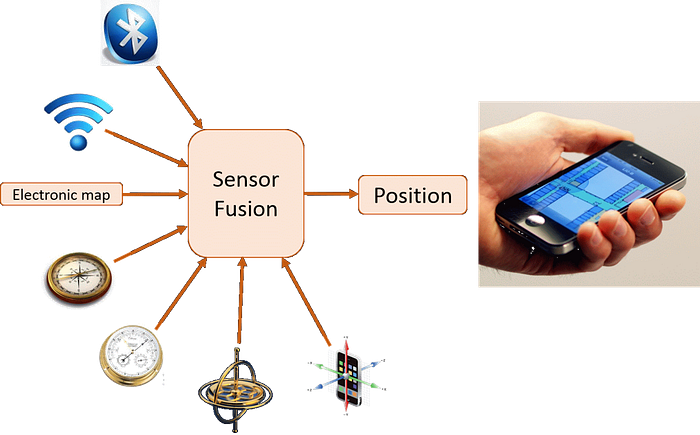

What Is Sensor Fusion?

When we combine data from many radars, Lidars, and cameras to create a model or image of the world around a vehicle, we call it sensor fusion. Because it balances the strengths of the many sensors, this model is more accurate than others. The information produced by various sensors can then be used by vehicle systems to promote better actions.

Every sensor has its own set of advantages and disadvantages. Radars are extremely accurate at determining distance and speed, especially in adverse weather, but they cannot read street signs. Cameras, on the other hand, excel at reading signs or objects such as pedestrians, bikers, and other vehicles. Sun, dirt, snow, rain, or darkness, on the other hand, can easily blind them. Lidars can detect objects accurately, but they lack the range of cameras or radar.

Future Scope

Today’s sensors are extremely strong and receptive. They consume less power than ever before and have low failure rates. In the near future, we can expect further improvements in electronics from sensors, as well as lower prices, better capabilities that make sure they consume low power, greater responsiveness, and a higher tolerance to failure.

For process control, several process plants have already implemented sensors and digitised processes. They have linked main processes in their factories and are able to detect, report, and analyse data to improve process efficiency. The next task is to generate value from sensemaking rather than just sensing. More completely exploiting high-fidelity plant data, which has been obtained more extensively, is required to achieve increasingly lucrative and sustainable operations.

The Industrial Internet of Things (IIoT) will continue to expand and supplement its applicability and scope as it evolves quickly. Temperature, vibration, pressure, and water quality are just a few of the attributes monitored by IIoT sensors. These sensors are linked to solutions that monitor and manage asset performance and energy efficiency using edge, fog, and cloud computing resources.

Sensing technology advancements will not be confined to sensing devices in the future. It will enhance agile decision-making and drive performance improvement by combining intelligent sensing with artificial intelligence (AI) and machine learning (ML).

The role and importance of sensors will continue to expand with the growing demand for smart products and the acceleration of digitization within companies.

Sensing technology may be used to improve quality, reliability, and performance in a variety of sectors. The possibilities are boundless, from solar-powered batteries and fuel cells to boosting healthcare capabilities, enhancing security, and robust environmental monitoring systems.

Biosensing is a field that aims to improve existing sensing technology so that it may be used in visual recognition, tactile, olfactory, acoustic, and physical systems. Because sensing technology can be used in both micro and nano settings, it’s having a big impact on diagnostics and drug monitoring.

In the same way, smart and intelligent sensor technology is poised to transform the world’s future in the next years. They will continue to evolve, such as measuring intangibles and becoming more wearable. The deployment of these sensors in medical, consumer products, communication devices, residences, and transportation is unavoidable if the integrity and dependability of the results obtained by these sensors can be ensured.
